In the first article of this series, The neighbours – six years of watching the same reef, I explained how I came to photograph the same coral colonies over and over again, quite unintentionally building a record of their changing fortunes.

In the second, When the reef fights back – growth and recovery, I shared some of the more encouraging stories – corals that have grown spectacularly, survived considerable setbacks or managed to recover. But not all changes happen gradually. Sometimes the sea comes along and rearranges everything in a matter of hours!

Norfolk Island’s reef is no stranger to heavy seas and powerful storm surges. Corals may be firmly attached to the reef, but they aren’t indestructible. Large colonies can be broken, overturned or swept away altogether, sometimes taking their neighbours with them. Of course, storms are a natural part of reef life. They’ve been shaping coral reefs for thousands of years. And although the damage can be quite spectacular, it doesn’t necessarily mean the end of the story for every affected colony.

I’ve selected five examples from my photographic archive showing some rather different outcomes.

Three months in Cemetery Bay

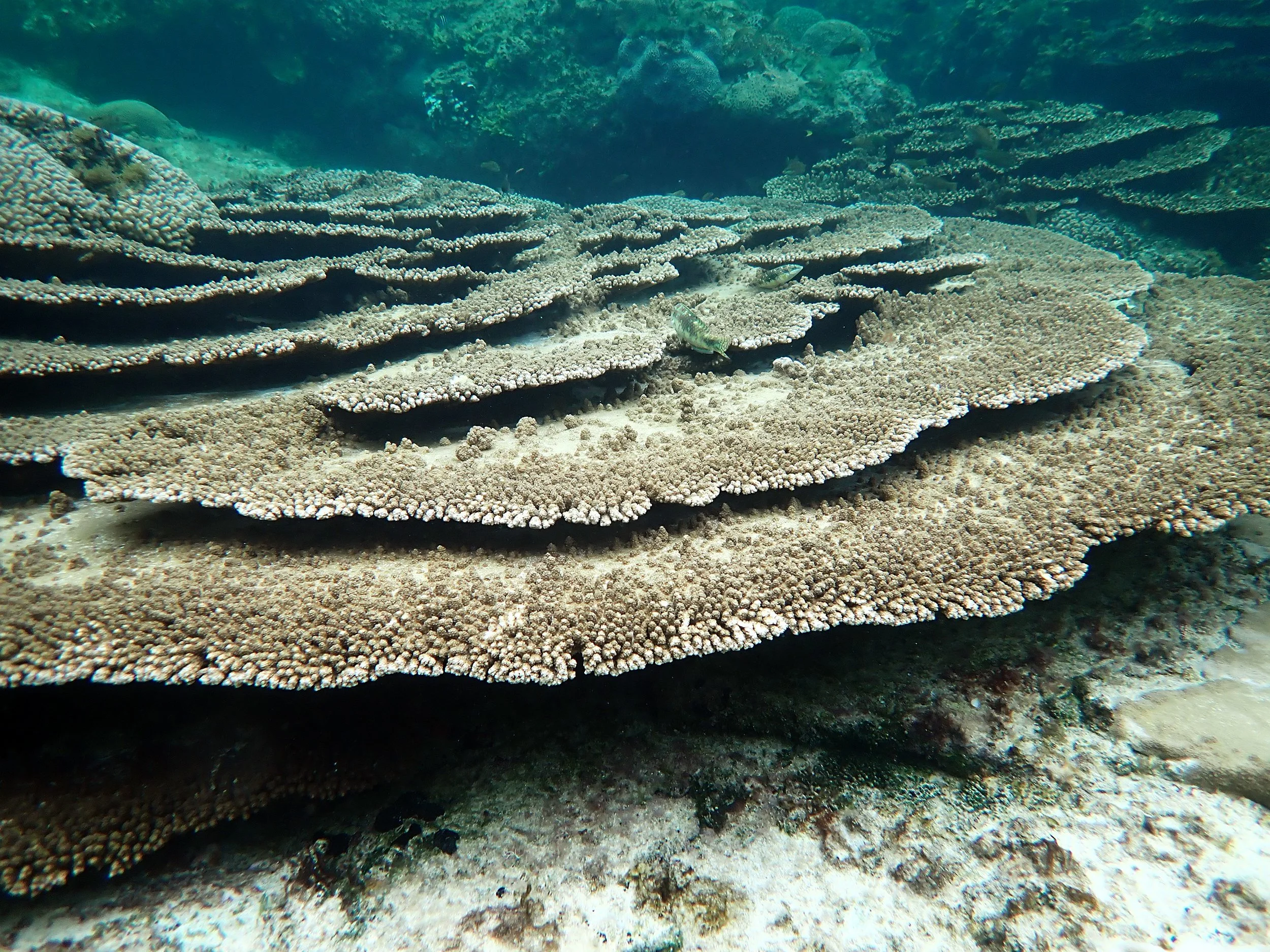

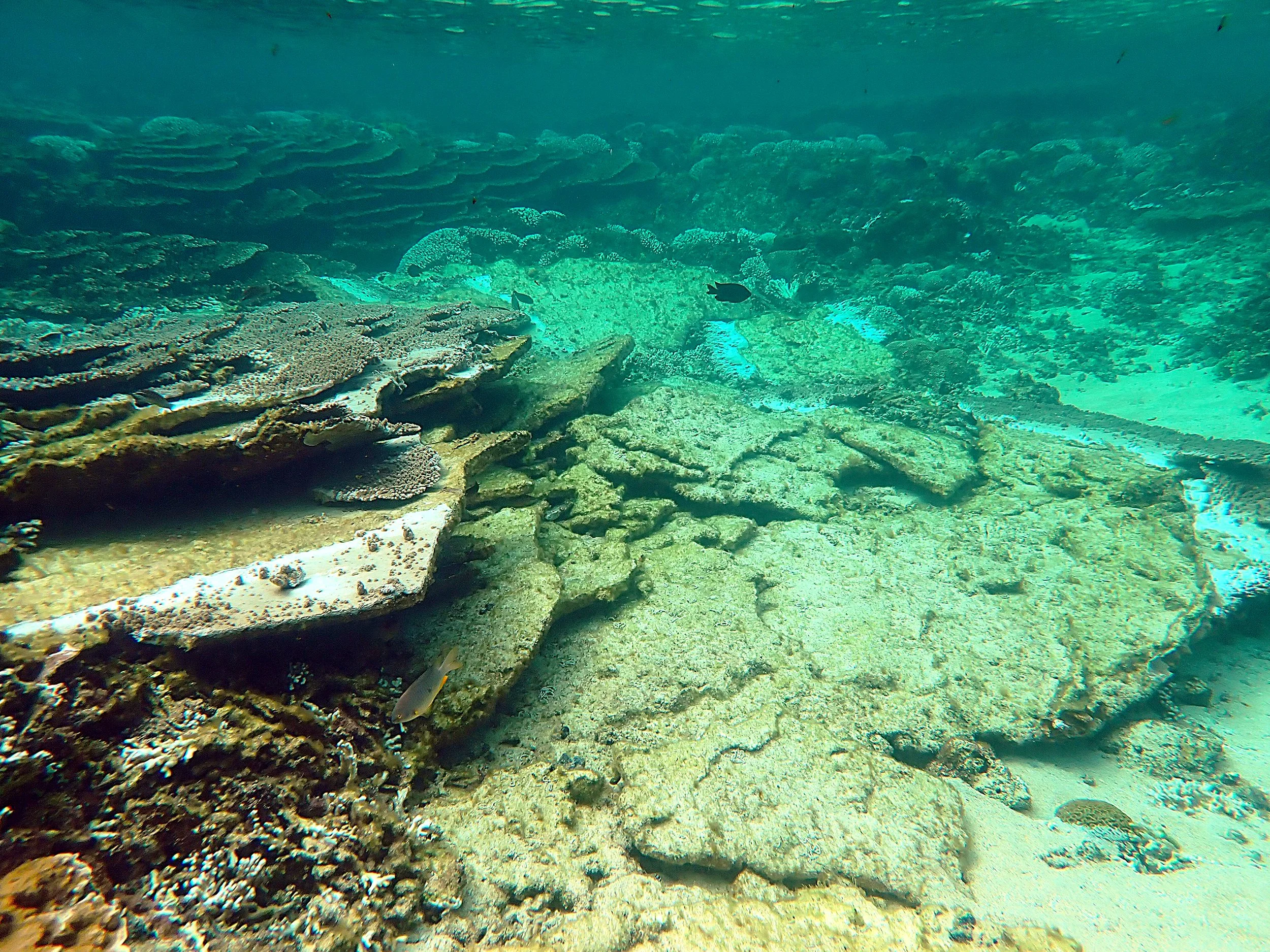

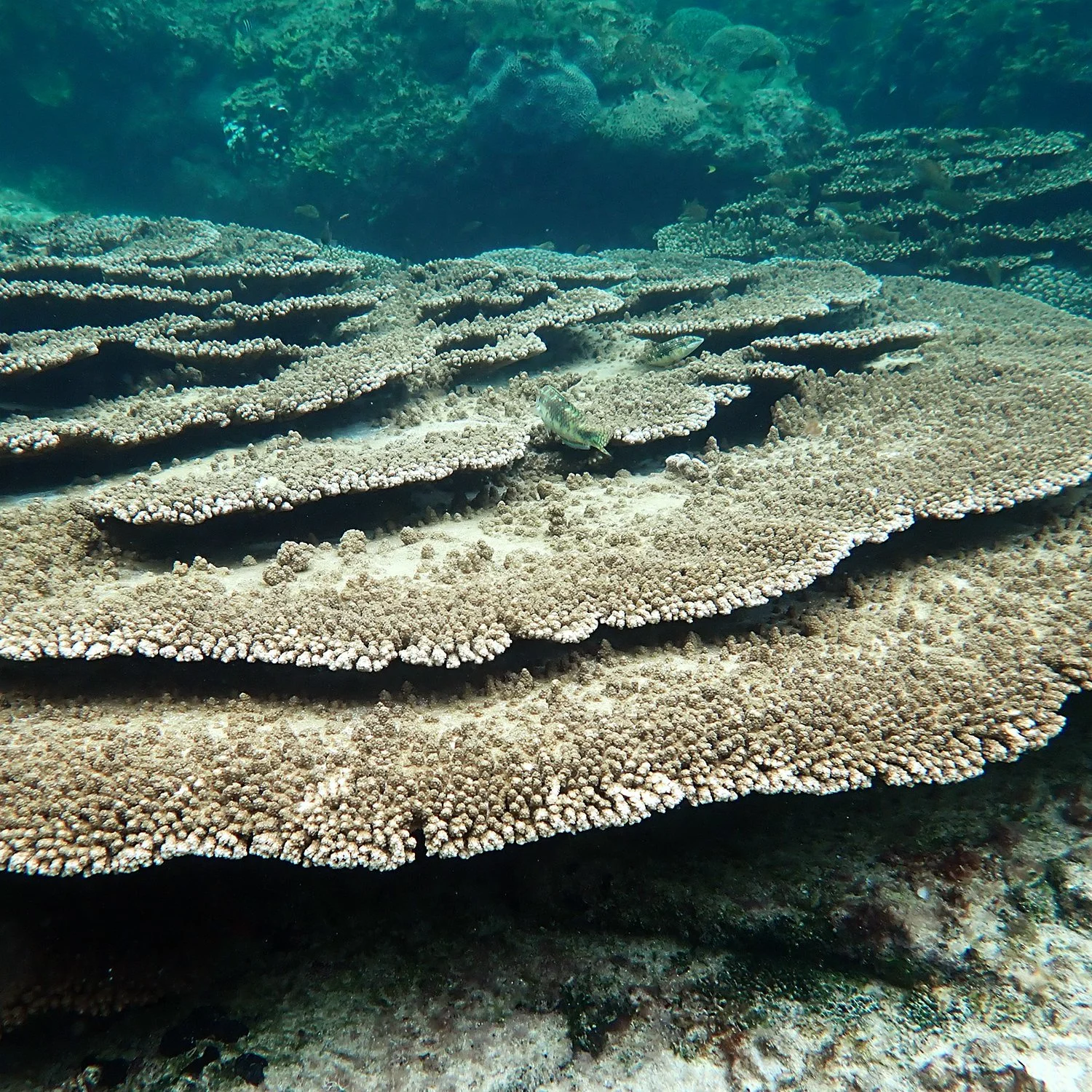

I’d barely begun taking underwater photographs when I captured this extraordinary change in Cemetery Bay. The first photograph was taken on 12 January 2020, and the second just over three months later, on 20 April. Look at those beautiful, overlapping plates in the first image, and then what remains in the second.

From memory, we had a huge swell come through during that period, which may explain the extensive breakage. Much of the magnificent structure had collapsed, leaving broken plates scattered across the reef.

I had no idea at the time that I was beginning a photographic record of just how dramatically our reef could change.

Stairway reef – white syndrome and two storms

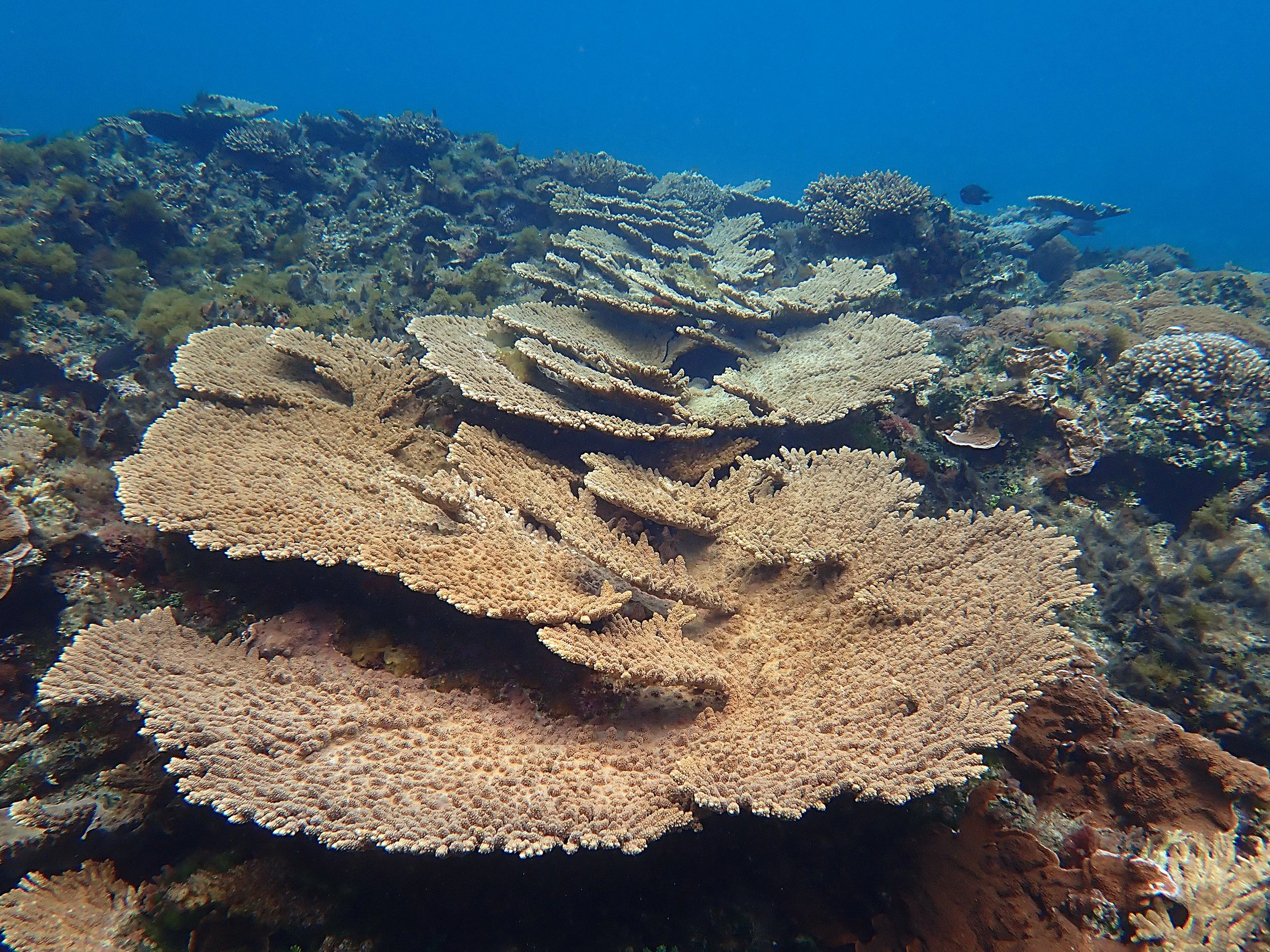

This was one of the most magnificent tabling Acropora colonies in the lagoon. With its wonderful arrangement of overlapping plates, it reminded me of a staircase, which is exactly how I filed it! Under ‘Stairway Reef’.

Unfortunately, it was already in trouble before the storms arrived. In February 2022, I photographed the beginnings of white syndrome, a disease involving the loss of living coral tissue, leaving the white skeleton exposed. Then, in late November 2023, a powerful storm came through. When I returned, there was considerable damage, although much of that extraordinary tiered structure was still standing.

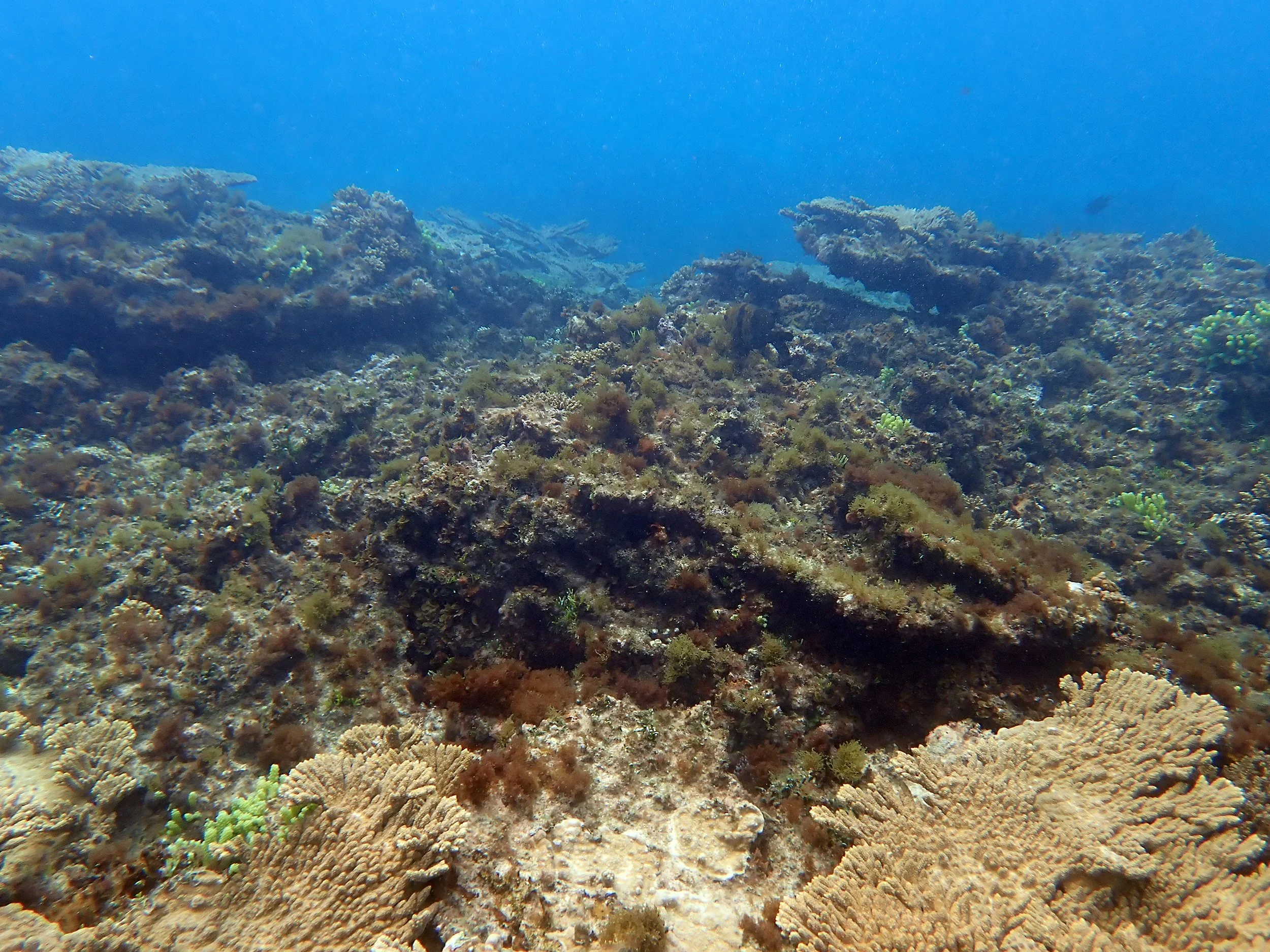

A couple of weeks later, another storm arrived. This time the destruction was far more extensive. The final photograph, taken in January 2026, shows what remains of the colony’s base.

It’s a rather sad sequence, particularly when you compare that magnificent original structure with what is left today. The coral had already suffered disease-related tissue loss, but it was the physical damage from the storms that destroyed much of its architecture.

Now you see it, now you don’t

This beautiful, bushy Acropora was another familiar landmark on my swims.

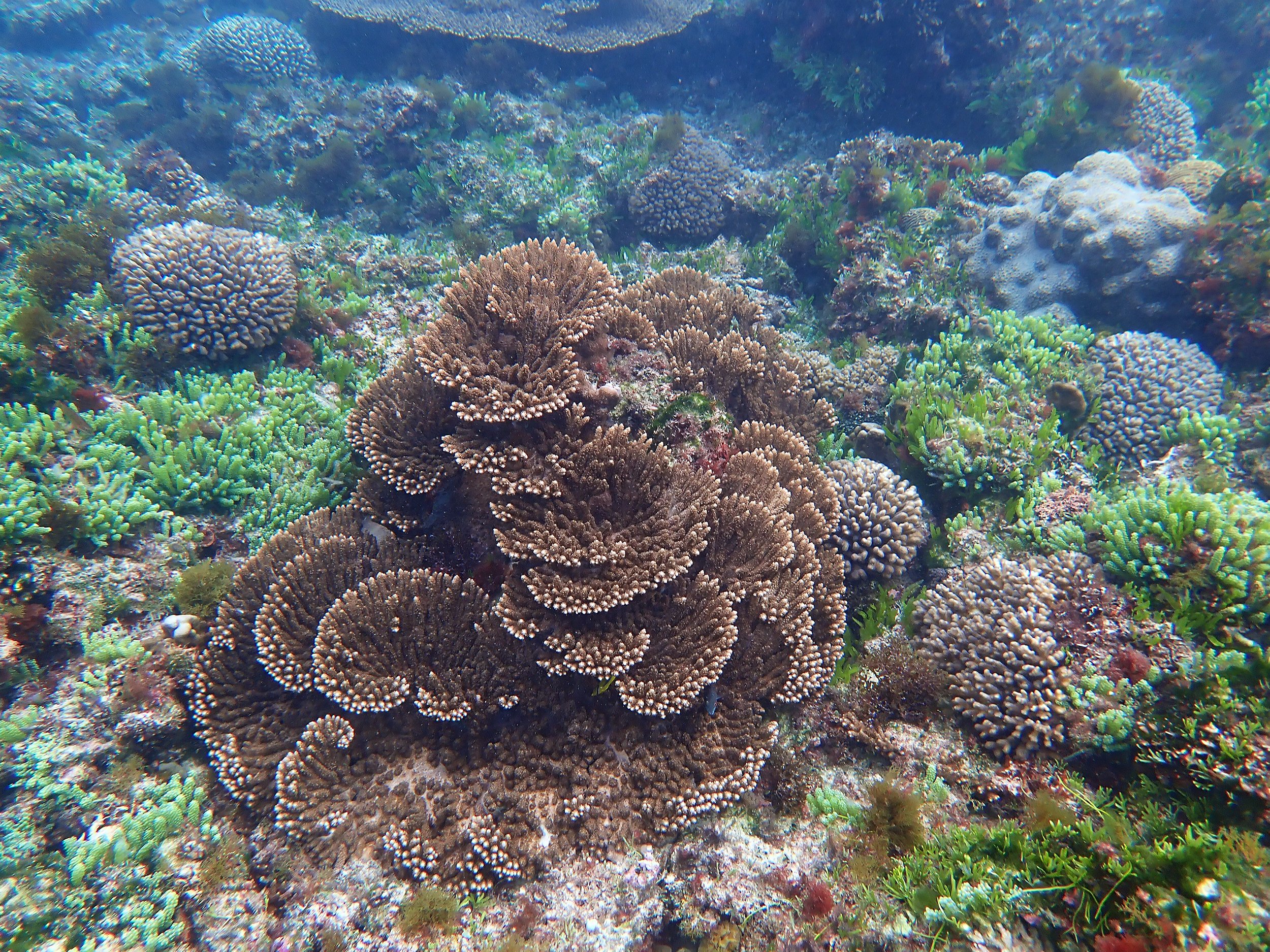

In July 2024, it was a substantial colony, with layer upon layer of intricate branches. Then a strong surge came through and wiped it out. Look carefully at the second photograph. The surrounding corals are still recognisable, but the large branching colony in the foreground has completely disappeared.

It’s astonishing to think how long it must have taken to grow into such an elaborate structure, only to be removed by the force of the sea. Without that earlier photograph, someone swimming over this patch of reef today would have no idea it had ever been there.

Collateral damage – the criss-crossing Acropora

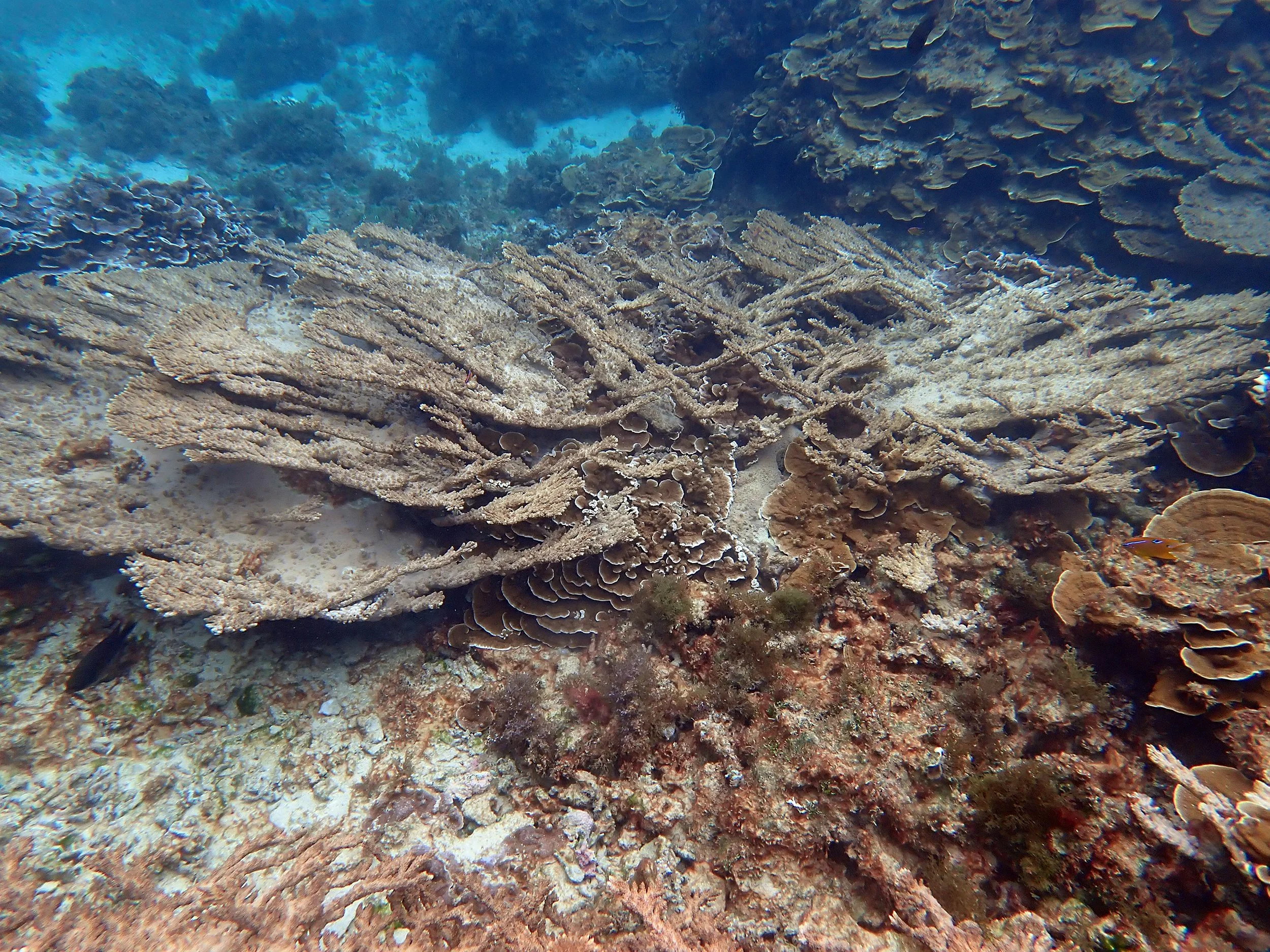

I particularly liked the beautiful criss-crossing Acropora branches in this part of Slaughter Bay, which is why I first photographed them in April 2021.

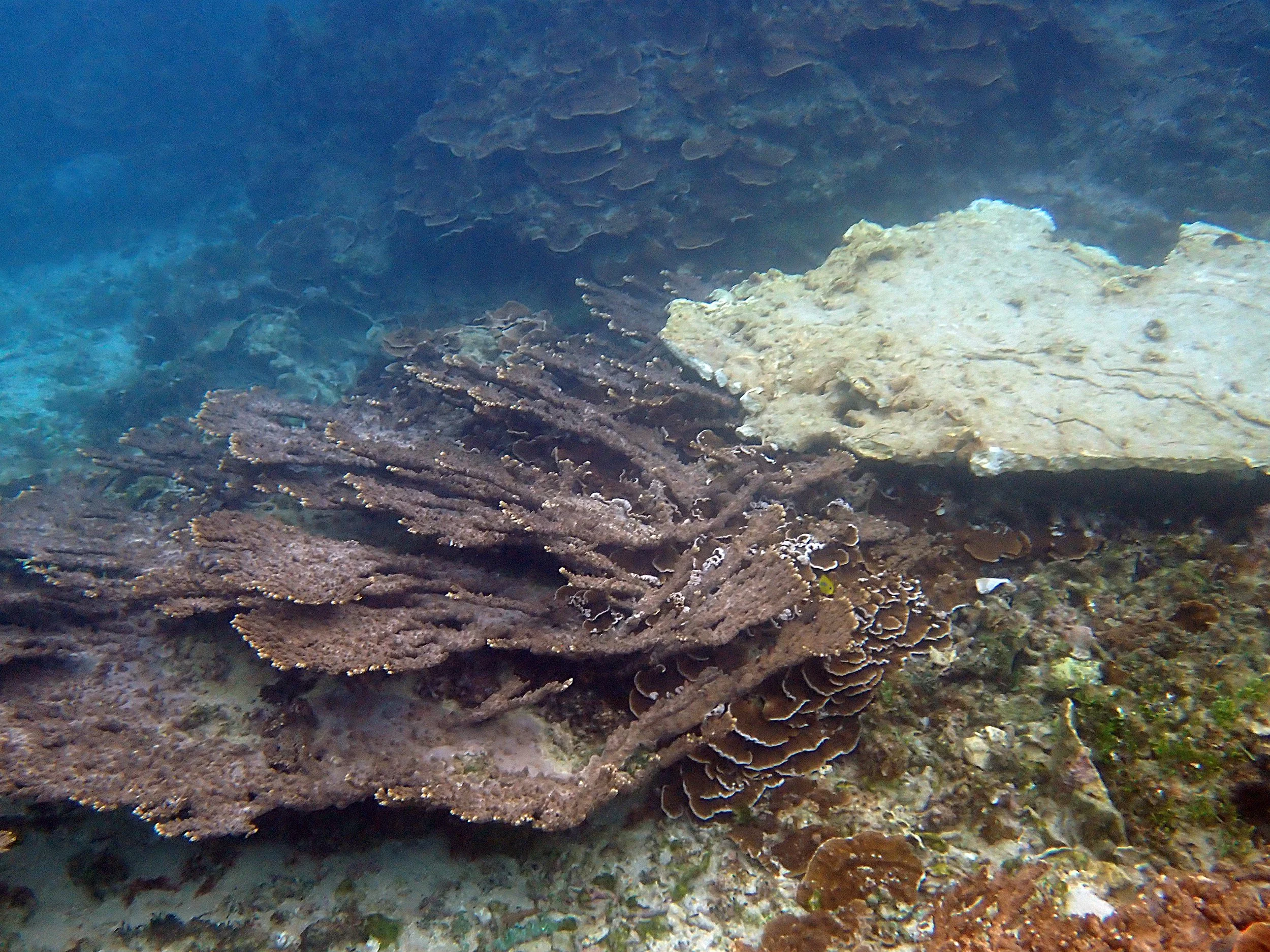

By June 2022, something rather dramatic had happened. A large, pale coral plate was lying across part of the area, apparently having broken away and fallen onto the corals below. Some of those lovely criss-crossing branches were still visible alongside it.

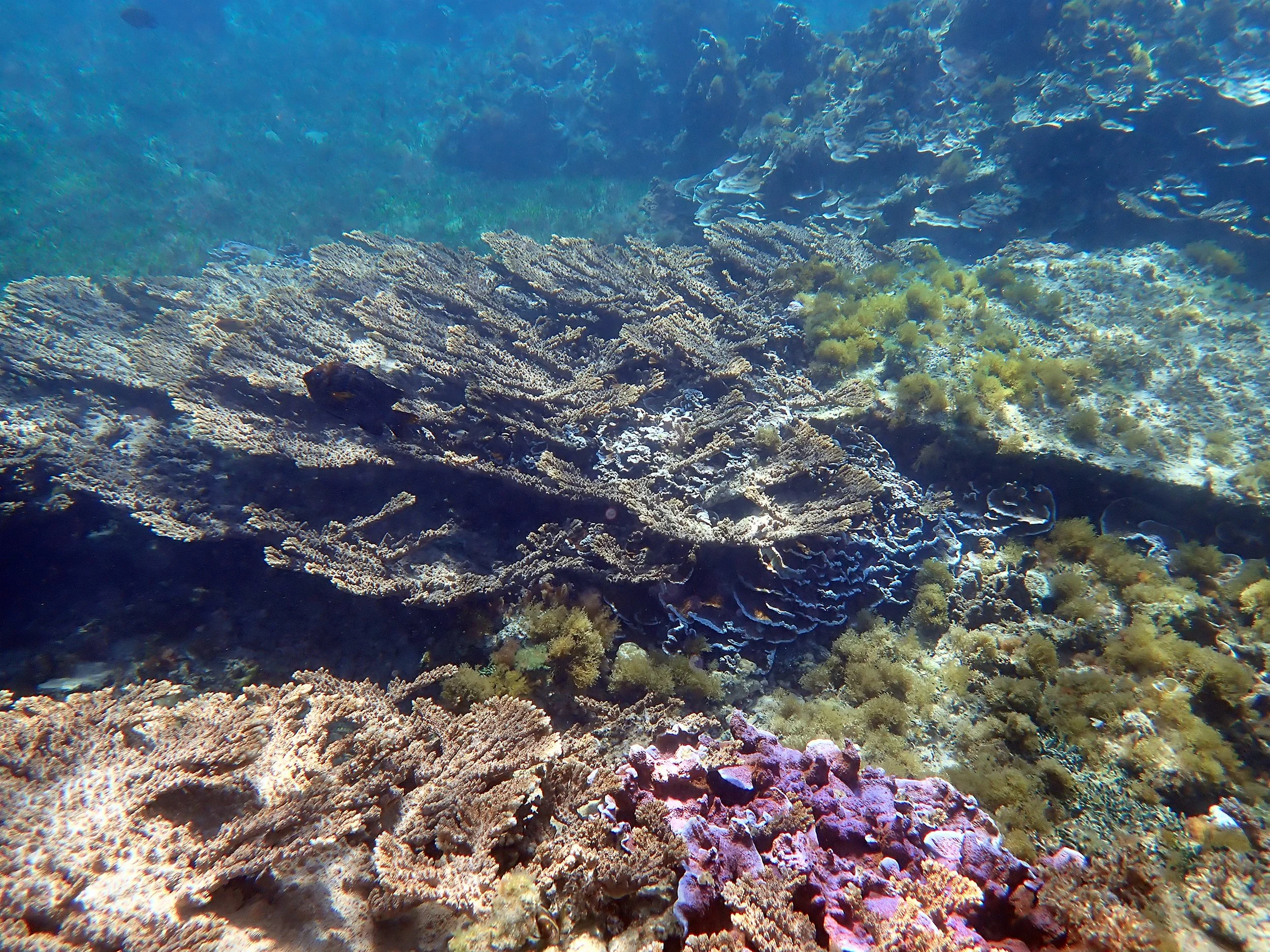

This is one of my favourite areas to video fish, particularly butterflyfish and pencil surgeonfish, mainly because of the structural complexity of the reef there. I wrote about this in a post called Pulling the rugosity from out of the reef. While still a good hot spot, much of that intricate branching structure has disappeared, and the fallen plate was becoming colonised by algae.

I didn’t actually witness the collapse, so I can’t say exactly when or how it happened. But the photographs illustrate another way physical damage can affect a reef. When a large coral plate breaks away, it isn’t necessarily just that colony that suffers. Anything beneath it can be crushed or broken in the process.

And those delicate Acropora branches would have been particularly vulnerable.

Making the best of being upside down

To finish, something rather more encouraging.

I’ve already included this colony in my article about growth and recovery, but I think it also deserves a place here because it illustrates a very different possible outcome from physical damage.

When I first photographed it in September 2020, this Acropora structure was upside down. Whether it had been overturned by a storm surge or particularly heavy seas, I don’t know. But it certainly wasn’t the end of its story. By May 2023, new growth had begun. And by November 2024, living coral had developed extensively around the overturned structure. Fast forward to October 2026, and there is the makings of a great fish-friendly habitat.

Rather than disappearing or becoming completely overgrown by algae, the structure has become part of a complex living habitat once again, with overlapping plates, branches and plenty of little hidey-holes for reef animals.

It hasn’t returned to its original position, but it’s certainly made the best of its new hood!

Picking up the pieces

Storms and powerful surges are part of the natural processes that shape coral reefs. Some corals survive the damage and recover, others continue growing in a different form, and some disappear altogether.

But the loss of a large colony also means the loss of much of the shelter and habitat its structure provided, at least until something grows to replace it. And that can take a very long time, particularly where algae have colonised the dead coral and become established. I’m seeing more and more examples of this in the areas of Norfolk Island’s inshore reef that I’ve been following.

I find these photographs particularly interesting because they show just how different the outcomes can be. Two colonies may experience substantial physical damage, yet one disappears while another continues growing for years afterwards. Quite extraordinary!
